LUXE6 - 6.0 METRE 12 VOLT BOOM GATE
SOLAR READY
SOLAR READY
OVERVIEW

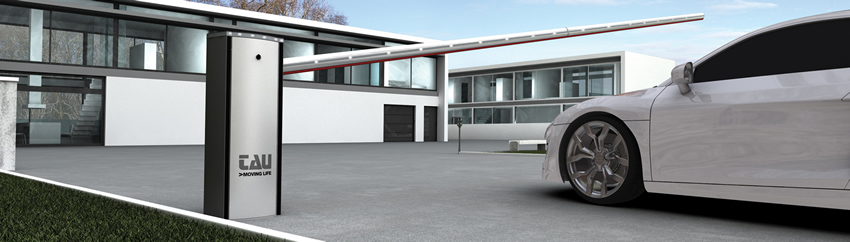

Manufactured in Italy by TAU the LUXE6 is a 12 volt boom gate with a 6 metre boom, a 6-9 second opening time and a 100 percent duty cycle making it ideal for car parks and high use areas.. The LUXE6 boom gate is a great example of quality build but through our bulk buying power and no middleman an exceptionally low price. The LUXE6 has a built in control board with slow stop and a full range of safety features. Battery back up or solar power are no problem with the LUXE6.
Manufactured in Italy by TAU the LUXE6 is a 12 volt boom gate with a 6 metre boom, a 6-9 second opening time and a 100 percent duty cycle making it ideal for car parks and high use areas.. The LUXE6 boom gate is a great example of quality build but through our bulk buying power and no middleman an exceptionally low price. The LUXE6 has a built in control board with slow stop and a full range of safety features. Battery back up or solar power are no problem with the LUXE6.
PRICING
LUXE6KIT -
Boom gate motor, steel enclosure, boom and logic control board.
$4790.00
REMTAU -
4 channel 433mhz key ring style remote control.
$66.00
TAUKEYPAD -
TAU wireless outdoor keypad
$268.00
BOOMSUPPORT -
Catch boom support
$170.00
BOOMSUPPMAG -
Catch boom support with magnetic boom lock
$906.00
LUXE6BASE -
Galvanised base plate with tie bolts
$96.00
LA8MLED -
Boom LED kit for booms to 8 metres in length
$232.00
PG8MSTRIP -
Boom rubber edge strip for booms to 8 metres in length
$144.00
LLCABLED -
Boom LED kit for boom gate cabinet top
$140.00
LUXE6ARTARM -
Articulated arm for LUXE6
$1063.00
BATT12V7AH -
Single 7ah battery for battery back up.
$54.00
SOLAR12.25.26KIT -
25W panel, 26ah battery, regulator
$344.00
SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
80mA - 650mA dependent on LED setup
Current at use -
2.5A
Motor power -
250W
Maximum thrust -
300Nm
Opening time -
6-9 seconds
Maximum boom length-
6.0 metres
Duty cycle -
100%
Height -
1105mm
Width -
447mm
Depth -
228mm
Weight -
70 Kg
IP rating -
IP44
DOWNLOAD & MANUALS
INSTALL MANUAL -
LOGIC MANUAL -
TIPS N TRICKS -
BROCHURE -
OPTIONAL
Boom Support -
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
