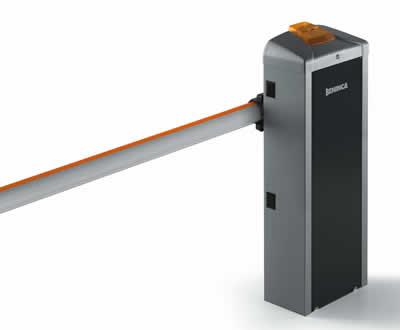

EVA8 - 8.0 METRE 24 VOLT BOOM GATE
OVERVIEW
Manufactured in Italy by Beninca the Industrial is a 24 volt boom gate with a opening time of 6 seconds and a 80 percent duty cycle and a 8.0 met re boom. The Industrial boom gate is our longest boom model. The Industrial has a built in control board with slow stop and a full range of safety features.
24 Vdc electromechanical barrier for intensive use with control panel
with 433.92 MHz radio receiver and integrated battery charger.
Control panel with LCD display. It is possible to self-test the
parameters and check the condition of the safety devices
(photo test).
Integrated absolute encoder, which ensures greater precision
in slowdown and advanced control of the boom movement
so that it never loses the reference position of the boom even
if there is a power cut or the automatic device is released.
Integrated STC System for precise torque calculation.
Serial connection with SIS accessory data sheet, for fast and easy
connection for operation in paired boom mode.
Fast-acting release.
Integrated flashing lamp (requires EVA.LAMP accessory data sheet)
Manufactured in Italy by Beninca the Industrial is a 24 volt boom gate with a opening time of 6 seconds and a 80 percent duty cycle and a 8.0 met re boom. The Industrial boom gate is our longest boom model. The Industrial has a built in control board with slow stop and a full range of safety features.
PRICING
EVA8 -
Boom gate motor, steel enclosure and logic control board - BUY ONLINE
$6334.00
EVA8BOOM -
7.0 to 8.0 metre aluminum boom arm - BUY ONLINE
$1690.00
REMBENINCA -
4 channel 433mhz key ring style remote control. - BUY ONLINE
$69.00
BENINCAKEYPAD -
Wireless outdoor keypad - BUY ONLINE
$415.00
BOOMSUPPORT -
Catch boom support - BUY ONLINE
$164.00
EVA8BASE -
Galvanised base plate with tie bolts - BUY ONLINE
$151.00
EVA8FLASHER -
Flashing light module for EVA8 - BUY ONLINE
$105.00
EVA8LIGHTS -
Boom LED kit for EVA8 - BUY ONLINE
$181.00
EVA8SKIRT -
Two metre skirt section for EVA8 (Max boom length is 7.0 mtrs) - BUY ONLINE
$305.00
BENINCASYNC -
Synchronize module for two EVA8 - BUY ONLINE
$105.00
SOLAROPT2425 -
2 x 25W panel, 2x26ah battery, regulator, enclosure and full mounting post. - BUY ONLINE
$1197.00
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
40mA
Current at use -
1.6A
Opening time -
6 seconds
Maximum boom length-
8.0 metres
Duty cycle -
80%
Height -
1265mm
Width -
460mm
Depth -
240mm
Weight -
110 Kg
IP rating -
IP44
DOWNLOAD & MANUALS
INSTALL MANUAL -
TIPS N TRICKS -
OPTIONAL
Boom Support -
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.
Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.
Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
