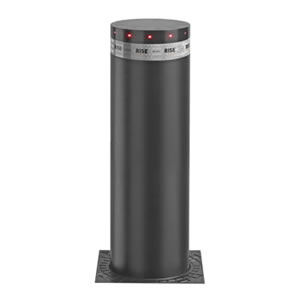

FORCE AUTOMATIC SECURITY BOLLARD
FORCE

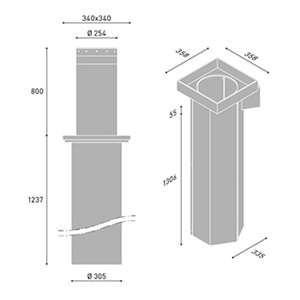

FORCE DIMENSIONS

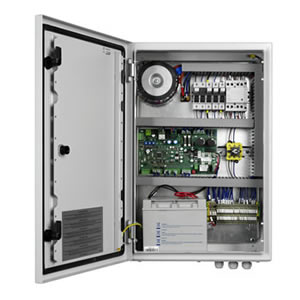

CP2SK
BOLLARD CABLE
24 VOLT - 254MM DIAMETER X 800MM HIGH
OVERVIEW
Manufactured in Italy by Beninca The Force is a 24 volt self contained electro mechanical automatic rising bollard. The Force is 254mm wide and is the first level of security bollard with the Force-K being the higher security anti - terror model. The major advantage of rising bollards over boom gates is the ability to restrict motor vehicle traffic but still allowing unrestricted pedestrian access and egress. The CP logic control boards all feature battery backup so power outage is not an issue.

Available in powder coat finish or stainless steel.
PRICING
FORCE825 -
Bollard 254mm diamter x 800mm high
P.O.A
FORCE825SS -
Bollard 254mm diamter x 800mm high - stainless steel
P.O.A
FORCEKIT -
Force foundation install kit
P.O.A
LOGICCP1S -
Control for one bollard in enclosure with batt backup module.
P.O.A
LOGICCP2S -
Control for two bollard in enclosure with batt backup module.
P.O.A
LOGICCP4S -
Control for four bollard in enclosure with batt backup module.
P.O.A
BOLLARDCABLE10M
10 Mtr plug and play cable
P.O.A
BOLLARDCABLE15M
15 Mtr plug and play cable
P.O.A
BOLLARDCABLE20M
20 Mtr plug and play cable
P.O.A
BOLLARDCABLE25M
25 Mtr plug and play cable
P.O.A
SPECIFICATION
Motor Voltage -
24 volts DC
Current Standby -
80mA (Logic control board)
Absorbed power -
90 Watts
Opening time -
10 seconds
Maximum height -
800mm
Duty cycle -
600 operations per day
Underground depth -
1250mm
Underground width -
360mm
Diameter -
254mm
Impact resisitance -
18,000 joule
Breakout resistance -
240,000 joule
IP rating -
IP68
DOWNLOAD & MANUALS
FOUNDATION MANUAL -
Click here to download the foundation installation manual.
BOLLARD MANUAL -
Click here to download the bollard installation manual.
LOGIC CONTROL MANUAL
Click here to download the logic control manual.
BROCHURE -
Click here for a brochure.
OPTIONS
LOOP DETECTORS - A must have if you use automatic closing function is loop detectors. Loop detectors provide an extra level of safety to prevent bollards from rising on vehicles. Bollard can have a single set but multiple sets are more commonly used. More information and a full list of product here.

TRAFFIC LIGHTS - The logic control board is equipped to work with traffic lights which will give vehicles clear instruction on when to proceed or otherwise.
