ASA6000

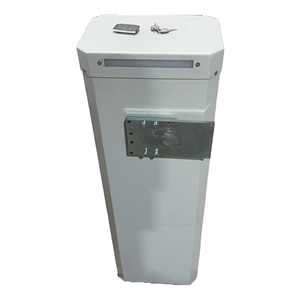

ASA6000 - 6.0 METRE 12 VOLT BOOM GATE
SOLAR READY
OVERVIEW
We have developed the ASA600012V from the ground up. The efficiency of the whole system is such that correctly installed this boom gate draws less than 1amp. In testing we disconnected the solar panel and let the 7 amp hour battery take full load. After 24 hours and 720 cycles it was still going. We sell the kit in this form however most customers choose to upgrade batteries and solar panels to allow for other things like safety photocells and access equipment. If you are unsure of what upgrades you may require give your local branch a call to discuss your needs.
PRICING
ASA600012V -
Includes logic control board
$2005.00

CITYBOOM -
4-6 metre aluminum boom arm.
$486.00

REMGR -
4 channel 433mhz key ring style remote control.
$42.00

KEYPADP6 -
Wireless outdoor keypad
$124.00

BOOMSUPPORT -
Catch boom support
$134.00

BATT12V9AH -
Single 9ah battery for battery back up.
$63.00

SOLAROPT1210 -
10W panel, 26ah battery and galv enclosure
$490.00

SOLAROPT1225 -
25W panel, 26ah battery, regulator and enclosure
$598.00

SPECIFICATION
Motor Voltage -
12 volts DC
Current Standby -
40mA
Current at use -
1.0A
Opening time -
9 seconds
Maximum boom length-
4.0 to 6.0 metres
Duty cycle -
80%
Height -
1130mm
Width -
324mm
Depth -
282mm
Weight -
44.5 Kg
IP rating -
IP54
DOWNLOAD & MANUALS
INSTALL MANUAL -
Click here to download the installation manual.
OPTIONAL
Boom Support -
When you read most boom gate manuals carefully it is specified that booms over three metres in length should have a boom support. Boom supports come in various forms and can be used in conjunction with safety and security. The simplest form is drop down leg. Next you have a fixed boom support and finally boom support with locking magnetic lock for the boom.

Photocells -
A must have if you use automatic closing function is photocells. Photocells provide an extra level of safety to prevent boom gates from closing on vehicles or pedestrians. Boom gates can have a single set between the boom gate and the boom support or multiple sets if desired at various heights. With this sort of automation be sure to choose a quality photocell with filters like the BEAMFLIP or BEAMFLIPBATT and install using screened cable.

Mains Power Filter -
Boom gate automation like this usually is installed on commercial and industrial sites where you can be pretty certain the mains power is less than desirable. Dirty power can result in lack of reliability and increased service costs. Installing a good quality filter will not only guard against spikes and surges but clean up the power before it reaches your electronics.
